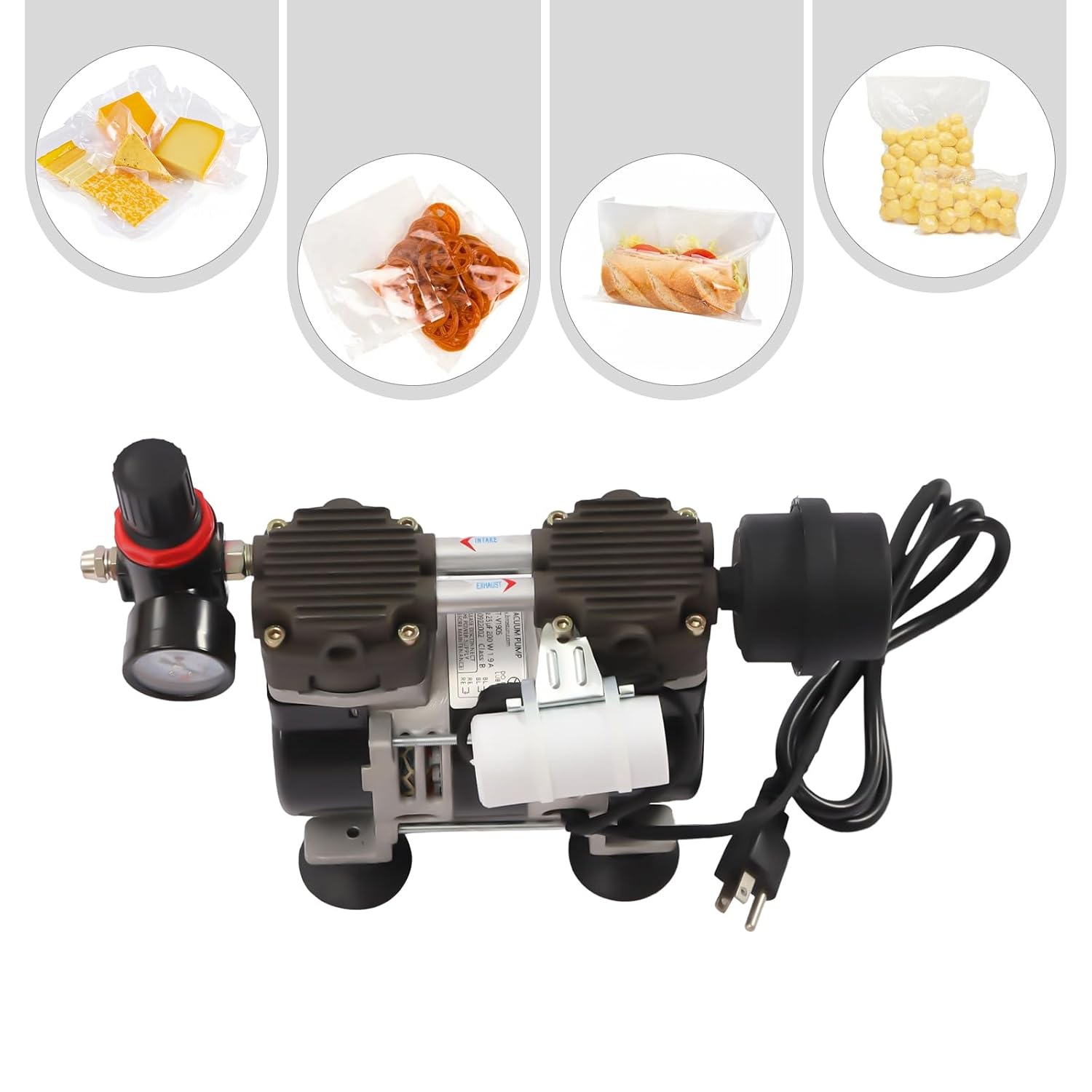

Lab Vacuum Pump, Lab Diaphragm Vacuum Pump - Non Oil Medical Mute Pump - 90Kpa Air Pump with Air Filter, Vacuum Pump Silencer Air Filter

DescriptionThe operation of vacuuming is a step that cannot be ignored in laboratories as well as in major plants. Our vacuum pump works at 60 L/min(2.12cfm), which can save time in the lab, freeing up more time for you to drill down on your experiments or produce more products.Specification Model: BST-V190SMaterial: Copper, Iron and AluminumColor: BlackPlug Type: USVoltage: 110V, 60HzPower: 200wVacuum Level: -90kpaPumping Speed: ≥60 L/min(2.12cfm)Noise: ≤48dbInstallation Screw: 4-M6Rotational Speed：≥1450r/minPackage Size: 26*15*18cm/10.2*5.9*7.1inchProduct Size: 17.2*9*14.2cm/6.8*3.5*5.6inchGross Weight: 4.3kg/9.48lbsNet Weight: 4kg/8.82lbsPackage Included1*Vacuum Pump1*Air Filter1*SilencerDetailsAnti-corrosion Treatment: The surface of the pump body and gas contact parts are treated with special PTFE material, which has super chemical resistance.Suction Cup Base: The base of the machine comes with four suction cups, which fix the machine firmly on the table and will not slide.Pressure Gauge: The air filter is equipped with a precise pressure gauge on top, which makes it easy for you to observe the pressure value when pumping air at any time.ApplicationIt can be used in robotic automation, packaging machines, the medical industry, and aerospace labs. Precision instrumentation, electronic printing, shipbuilding and other fields.Notes1. Please note that this product cannot pump liquids or oil. If you are pumping liquid, you need to install an oil and water separator.2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.circulating oilless vacuum pump vacuum regulator vacuum pump oil male pump lab vacuum pumps bst-v190s lab diaphragm vacuum pump oil free oilless medical mute pump -90kpa air pump with air filter,vacuum pump silencer air filter.

• 【Premium Material】- Vacuum Pump is made of high-quality iron, copper and aluminum and classic bearings, which are smooth running, durable and corrosion-resistant, allowing it to have a longer service life.Without any working medium (oil-free), it is pollution-free. Meanwhile, the machine is equipped with an air filter to ensure the purity of air.This vacuum pump has a compact size of 6.8*3.5*5.6inch, so it won't take up too much space and is easy to store when not in use.
• 【Powerful Pumping Power&Pure Copper Motor】- The power of this vacuum pump of 200 watts and high rotation speed higher than 1450rpm/min provide it with super pumping power so that the vacuum degree can reach -90kpa.It adopts a high-quality copper wire motor with low power, low-temperature rise and high energy efficiency ratio to provide long-term, stable and efficient operation for the vacuum pump.
• 【Low Noise&Good Heat Dissipation】- The pure copper motor and the equipped silencer make its operation noise less than or equal to 48 decibels, providing you with a quiet working environment.Both sides of the machine are designed with mesh cooling fans and a thickened cooling cylinder cover to dissipate the heat generated by the motor operation in time to further maintain the stable performance of the machine.
• 【Easy to Use&Maintain&Safe&Reliable】- The vacuum pump is plug-and-play and runs without any oil as lubrication, which eliminates the trouble of refueling for you. And the oil-free design makes the piston cylinder etc. not dirty and easy to clean.Our special motor has passed CE certification, which will automatically cut off the power after the temperature of the pump body reaches 266℉/130℃ to protect the motor from being damaged in long-term operation.
• 【Widely Application】- It can be used in robotic automation, packaging machines, the medical industry, and aerospace labs. Precision instrumentation, electronic printing, shipbuilding and other fields.circulating oilless vacuum pump vacuum regulator vacuum pump oil male pump lab vacuum pumps bst-v190s lab diaphragm vacuum pump oil free oilless medical mute pump -90kpa air pump with air filter,vacuum pump silencer air filter.
